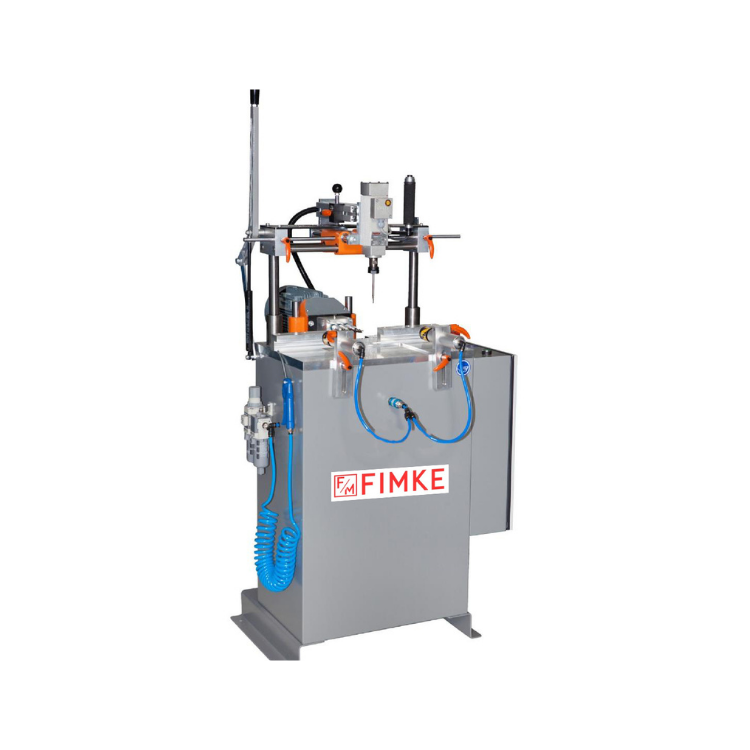

Designed for creating cylinder holes, handle openings, and espagnolette slots on PVC and aluminum profiles, particularly in structural elements such as doors and sashes.

● General Features

● The copy milling head on the machine is manually operated by the operator and functions on the vertical axis, enabling precise copying operations on various profile types.

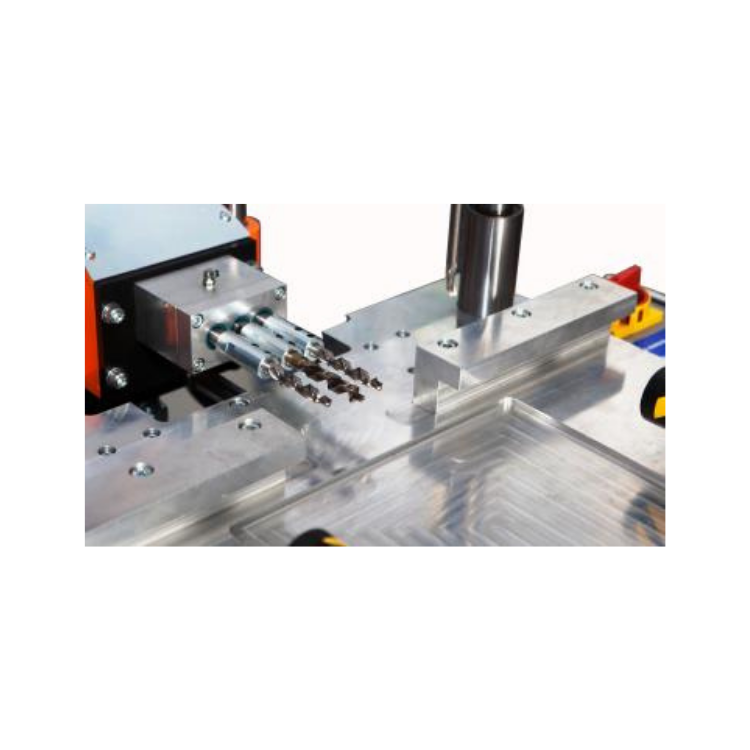

● The triple drilling unit is also manually moved by the operator along the horizontal axis, allowing holes to be drilled at the desired points on the profile.

● The use of a dual-stage triple drilling group combined with a low-speed motor extends the lifespan of the drill bits and ensures a more efficient drilling process.

● The high-frequency controlled, high-speed copy milling motor is easily activated via a button located on the control lever, offering practical operation.

● In PVC sash profiles, the triple handle hole support plate enables automatic drilling through a hydro-pneumatic system, saving time and labor during operation.

● The machine is equipped with shock absorbers that facilitate vertical and horizontal movement, allowing easier control for the operator and more precise machining.

● Two-stage template guides are available for 5 mm and 8 mm milling cutters, enhancing versatility by accommodating different cutter sizes.

● With its universal template, all copying operations can be performed, providing flexible use across different profiles and component types.

● The copy milling unit is equipped with a double-axis stop spindle, ensuring a stable and secure working environment.

● Copying operations are performed at a 1:1 ratio, ensuring high accuracy and precise results.

● The pneumatic profile clamping system is activated via a hand control valve, securing profiles in place and preventing slippage during machining.

● Optional Feature:

● An optional cooling system can be added for aluminum profile processing. This system prevents overheating of the workpiece and enhances overall machining quality.

TECHNICAL SPECIFICATIONS:

Total power: 1.85 kW

Voltage: 3×400 Vac

Frequency: 50/60 Hz

Milling motor power: 0.75 kW

Triple drilling motor power: 1.1 kW

Milling motor speed: 18000 r.p.m.

Triple drilling motor speed: 900 r.p.m.
