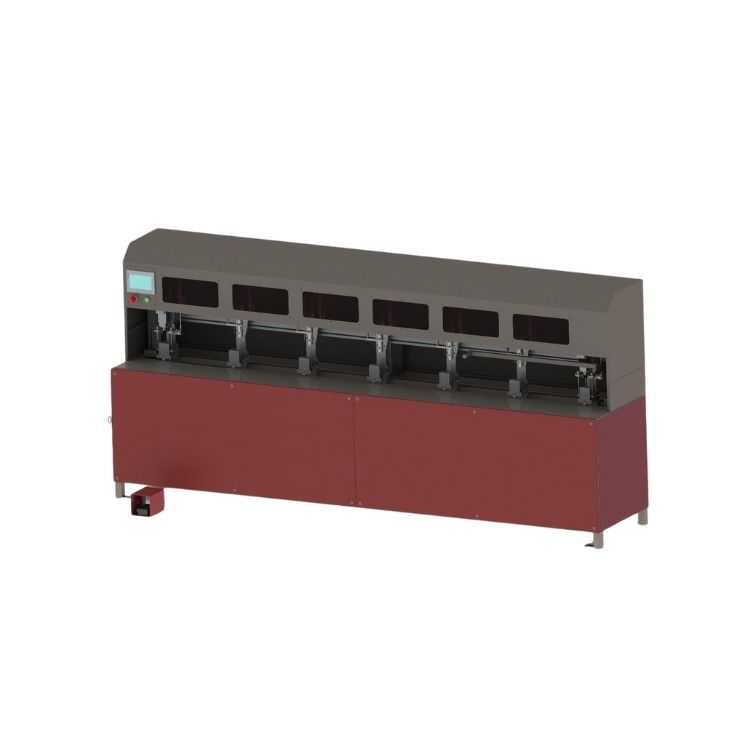

● The 8-motor insect screen drilling machine has been specially designed and developed to drill evenly spaced cord holes in sliding insect screens precisely.

● Thanks to its high-precision touchscreen, all settings can be easily and user-friendly configured.

● While the first four motors of the machine operate continuously, motors 5, 6, 7, and 8 can be activated in desired combinations via the touchscreen. This feature allows quick adaptation to different hole patterns and requirements.

● The special bearing system used in the machine allows the drilling points of the 8 motors to be easily and practically adjusted at equal distances for insect screens ranging from 500 mm to 3000 mm in length.

● Drilling 8 holes on a 3000 mm-long insect screen is completed in approximately 20 seconds, offering high efficiency.

● The 8 motors in the machine operate with high precision under driver control, ensuring accurate hole drilling.

● To enhance ease of use, the start command can be given via a foot pedal, keeping the operator’s hands free and making the process safer.

● For practical measurement, a special ruler system is positioned in front of motors 1 and 2.

● Thanks to the standard chuck system, the drills can be quickly and easily replaced when needed.

● The optional mold system, designed for different screen widths, is ideal for high-precision drilling operations.

● The molds on the machine can be quickly and easily changed using the pin system.

● All motors are housed within a specially designed enclosure to ensure high safety, enhancing both operator protection and machine durability.

Technical Specifications

Electricity Rating 400 V, 3 ~ 50-60 Hz

Total Power 5,5 kW

Drill Diameter Ø2,5 mm

Min. Fly Screen Length 500 mm

Max. Fly Screen Length 3000 mm

Min. Fly Screen Thickness 20 mm

Max. Fly Screen Thickness 100 mm

Air Pressure 6-8 Bar

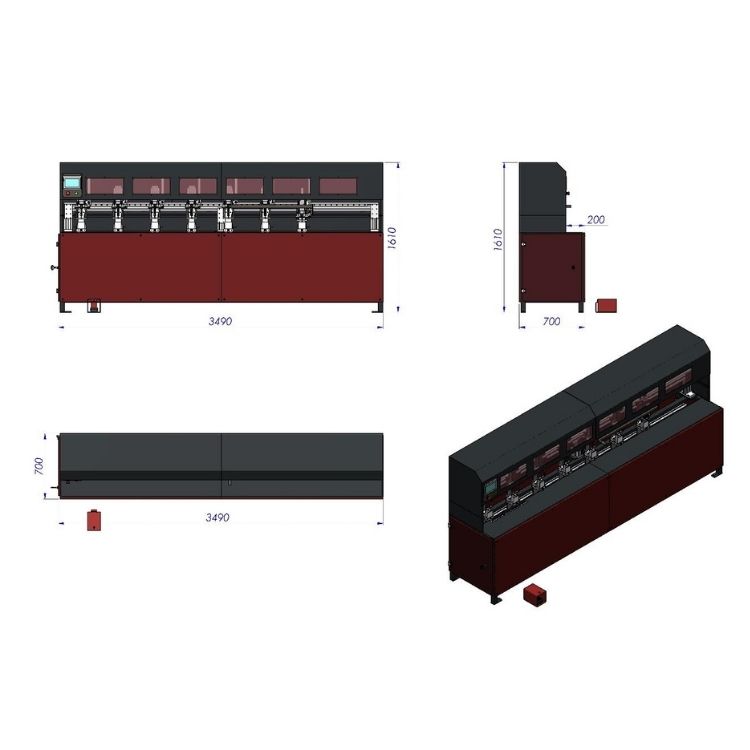

Machine Height 1610 mm

Machine Length 3490 mm

Machine Width 700 mm

Machine Weight 650 kg
