Açıklama

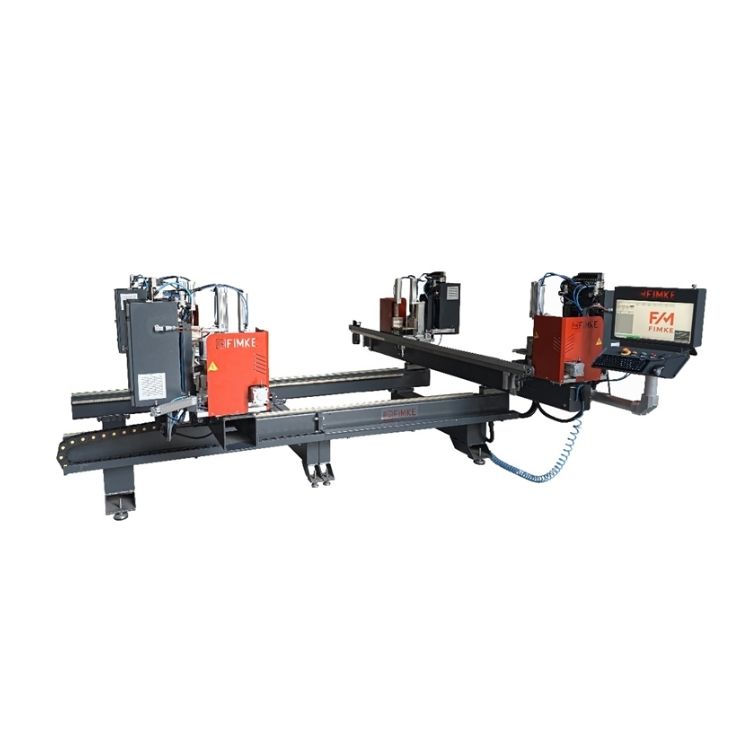

Machine Features
● Enables welding of all four corners of PVC frames simultaneously at a 90° angle.
● Provides a precise and efficient welding process through a 3-axis CNC control system.
● Capable of welding with a tolerance of up to 0.2 mm on both white and colored profiles.
● Computer-controlled PID temperature system ensures precise and stable heat management.
● Long-lasting heating plate system distributes heat evenly, contributing to high-quality welds.
● Welding molds can be quickly and easily changed, saving time in production processes.
● Comes with a 22” LED monitor and a PC running Windows 11.
● Supports wireless network connection and USB data transfer, offering flexible and user-friendly operation.
● Operates effectively under optimal pressure with the integrated pressure control system.
● Welding axes move via hardened steel screw and rack-and-pinion system, ensuring both precision and durability.
● The measurement control system allows tolerance of up to 2 mm for errors resulting from profile cutting.
● Heating plates are protected and long-lasting thanks to a Teflon wrapping system.
● Remote access to the machine is possible, enabling rapid fault detection and resolution.
Optional Features
● Barcode Reader: Can be integrated with a barcode reading system to facilitate product identification and tracking during production, increasing overall efficiency.
● Gasket Application System: An optional automatic gasket application system can be added to ensure precise and uniform gasket placement during welding, enhancing sealing and quality standards.
● Welding Molds: Quick and easy-to-change welding molds suitable for different profile types provide flexible production capabilities.
● Preheated Blade System: Especially useful in cold conditions, a preheated blade system can be employed to improve welding quality on cold profiles, making the welding process more efficient and reliable.
TECHNICAL FEATURES
Total Power: 8 kW
Voltage: 3×400 Vac
Frequency: 50/60 Hz
Current: 25A
Air Pressure: 6-8 bar
Air Consumption: 72 lt/dk
Max. Profile Height: 200 mm
Min. Profile Height: 40 mm
Max. Profile Width: 120 mm

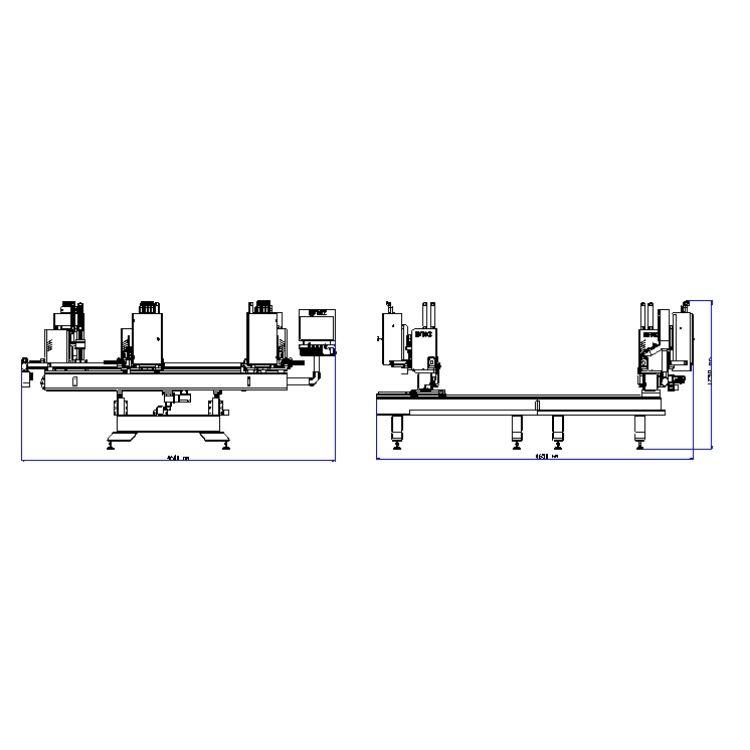

Machine Height: 1.750mm
Max Weld size: 3.000 mm x 2.650 mm
Min. Weld Size: 410 mm x 410 mm
Machine Length: 4.650 mm
Machine Width: 4.600 mm
Machine Weight: 1.715 kg
