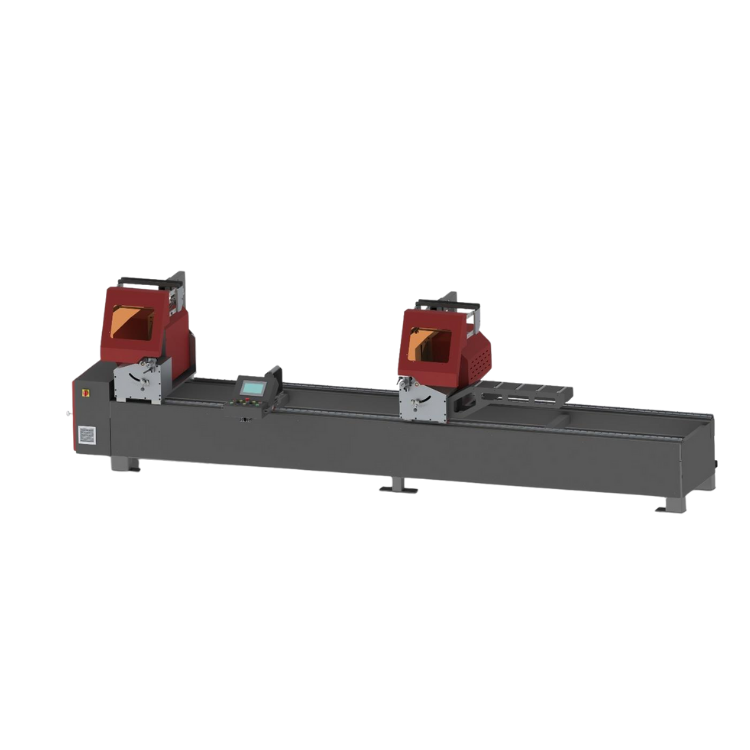

PVC Profile Cutting Saw Features

● Manufactured with a robust and durable structure to ensure maximum length and angle accuracy.

● The movable head operates via a servo motor, enabling high-precision cuts.

● Capable of cutting profiles up to 4,300 mm in length.

● Saw heads can automatically rotate to 45° and 90° angles, while intermediate angles can be easily set manually.

● The movable head advances to the desired position automatically via the touchscreen.

● Information such as part number, length, angles, and quantities can be programmed from the control panel.

● Remote connection and USB data transfer are supported.

● Saw feed speed can be adjusted as needed during cutting.

● The conveyor on the movable head ensures the cut material remains stable.

● Features an ergonomic design for user comfort.

● Automatic closing covers prioritize both operational and operator safety.

● Secures profiles firmly and rigidly using horizontal and vertical pneumatic clamping pistons.



Optional Enhancements

● Barcode Printer: Integrates with the cutting process to label produced parts with relevant information, facilitating production tracking and part management.

● Dust Collection Unit: Efficiently collects chips and dust generated during cutting, maintaining a clean working environment and enhancing machine performance.

● Automatic Aluminum Corner Block Cutting: Enables fast and precise cutting of aluminum profile corner blocks, saving time in production and minimizing workmanship errors.

● Automatic Short-Cutting System: Designed for applications requiring short-length cuts, providing fast, precise, and high-volume cutting capability.

Technical Specifications

Electricity Rating : 400 V, 3 ~ 50-60 Hz

Total Power : 6 kW

Power of each motor : 2.2 kW

Saw Speed : 2800 rpm

Max. Cutting Dimension : 4300 mm

Min. Cut Size : 450 mm

Air Pressure : 6-8 Bar

Air Consumption : 50 lt./min. (120 lt/min. with cooling system)

Machine Height : 1500 mm

Machine Length : 5250 mm

Machine Width : 1200 mm

Machine Weight : 950 kg
