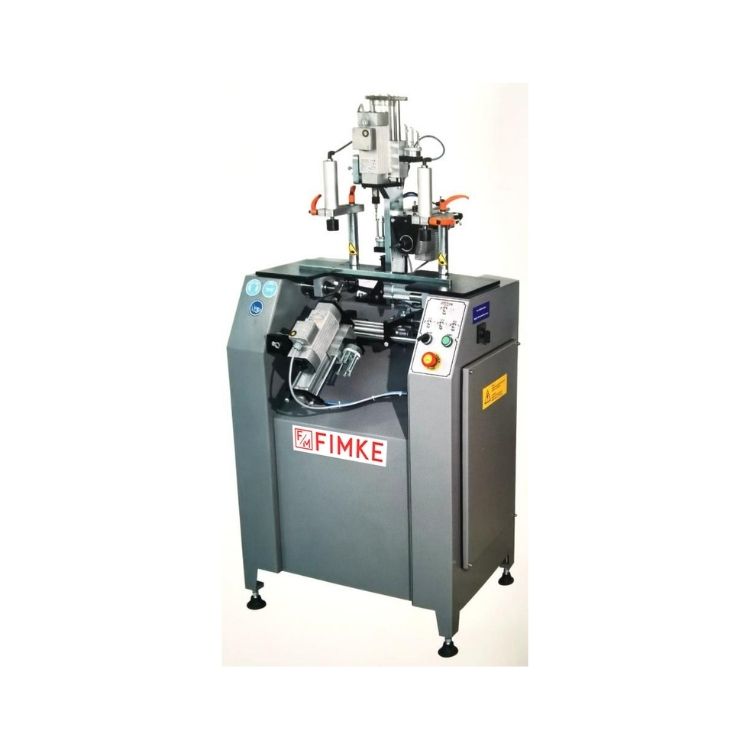

WATER DRAINAGE MACHINE (3 MOTORS)

● This machine is specially designed for creating drainage channels in PVC profiles.

● Its high-frequency motors ensure maximum efficiency during operation.

● The machine is equipped with a total of three motors, which can be easily selected by the user via the buttons provided.

● The pneumatic profile clamping system holds profiles securely and steadily, minimizing the risk of slippage or misalignment during processing.

● The ability to operate the three motors individually or in pairs provides flexibility for different processing requirements.

● Users can easily adjust the milling feed speeds according to specific needs.

● The adjustable drainage channel length allows for quick adaptation to different profile types.

● The movable motor system, designed for symmetrical channel cutting, ensures precise and smooth operation.

● A single-button function allows channels to be milled on both sides of the profile in one operation, saving time and increasing efficiency.

● Easy adjustment for different types of PVC profiles provides flexibility in production processes.

● For profiles of the same series, channels can be cut without changing settings, enhancing speed and practicality in mass production.

● All operations are controlled by the advanced PLC system, ensuring a reliable and fully automated working environment.

TECHNICAL SPECIFICATIONS:

Total power: 1.2 kW

Voltage: 230 Vac

Frequency: 50/60 Hz

Milling motor power: 0.37kW

Milling motor speed: 12000 r.p.m.

Current: 5.5 A

Air pressure: 6-8 bar

Air consumption:: 20 lt/min

Max. profile cutting height: 120 mm

Max. profile width: 110 mm

Max. milling length: 50 mm

Milling depth: 25 mm

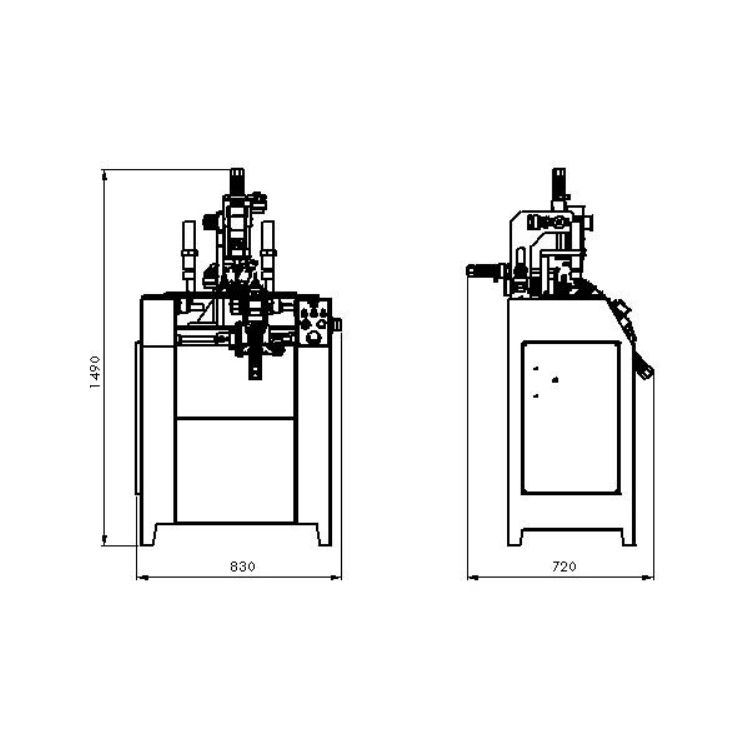

Machine height: 1490mm

Machine length: 830 mm

Machine width: 720 mm

Machine weight: 115kg
