Machine Specifications

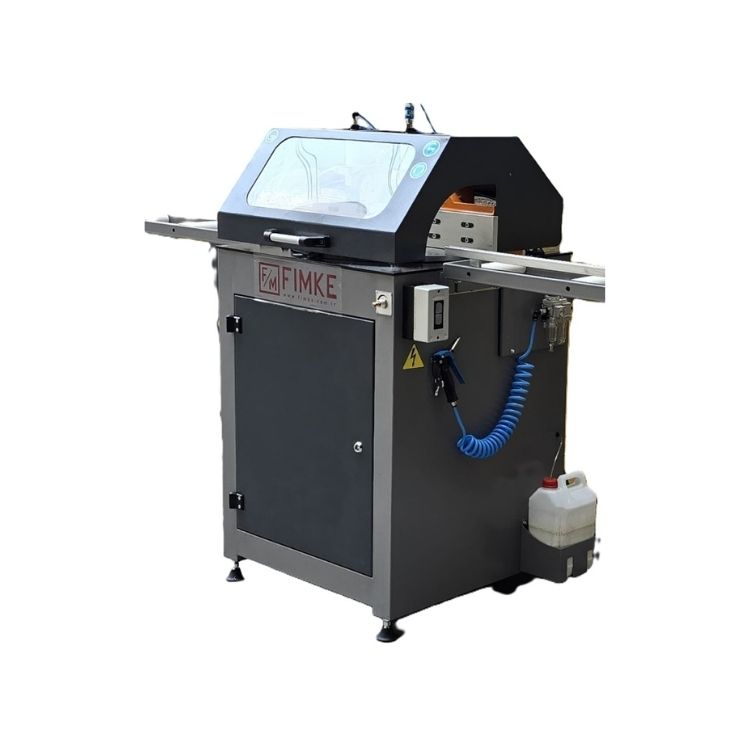

The machine is specifically designed for the precise and safe cutting of PVC profiles.

● It has a Ø450 mm diameter pneumatic system bottom-mounted saw; thus, cutting operations are carried out quickly and efficiently.

● The special saw engine used in the machine provides comfort to the user with its low noise level during operation.

● The saw’s travel speed can be adjusted as needed, providing flexible use for different profile types and thicknesses.

● It offers a wide range of angles from 22.5° to 157.5°. Additionally, easy-to-use fixing points at 45°, 90°, and 135° allow for practical and precise adjustments.

● The pneumatic clamping system that secures the profile during cutting increases safety and helps ensure a smooth cut.

Optional Enhancements

● Right and left profile support conveyors: This ensures the profiles are transported evenly and safely from both sides during the cutting process. This increases stability and ensures precise cutting on long profiles.

● Manual Measuring System Conveyor (3.0 m): This allows the user to manually measure and position profiles up to 3 meters long. This system allows for easy and accurate pre-cut measurements.

● Automatic Digital Measuring System: This system allows switching to a digital measuring system for situations requiring high precision and speed in cutting operations. Automatic measurement reduces the margin of error and increases productivity.

● Speed ​​control and cooling system for aluminum: This system allows for adjusting the saw speed and controlling the heat generated during the cutting of aluminum profiles. This equipment helps achieve smooth and clean cutting results in aluminum.

TECHNICAL FEATURES:

Total Power: 1,5 kW

Voltage: 400 Vac

Frequency: 50/60 Hz

Saw engine speed: 2.800 rpm.

Current: 4 A

Air Pressure: 6-8 bar

Air Consumption: 15 lt/dk

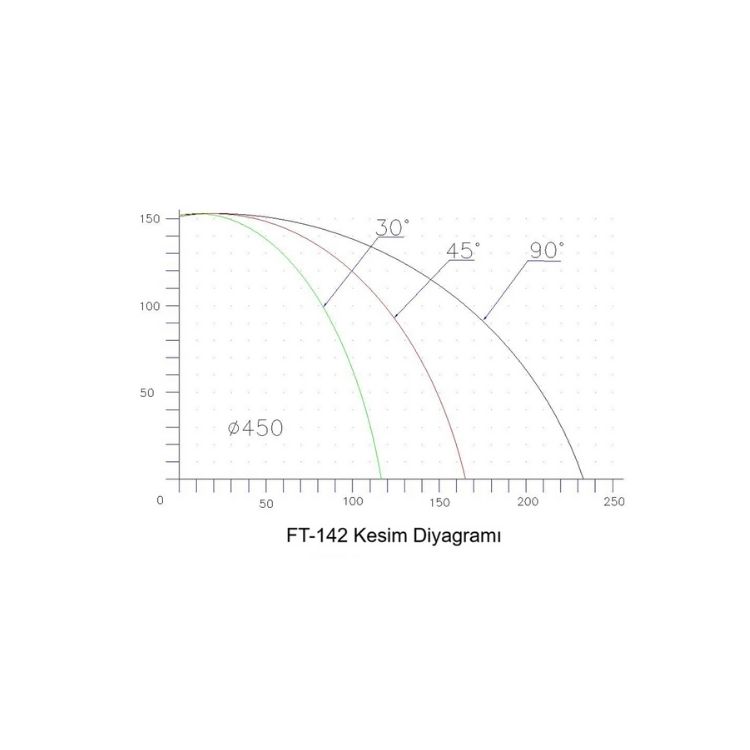

Max. Profile width: 220 mm
