Açıklama

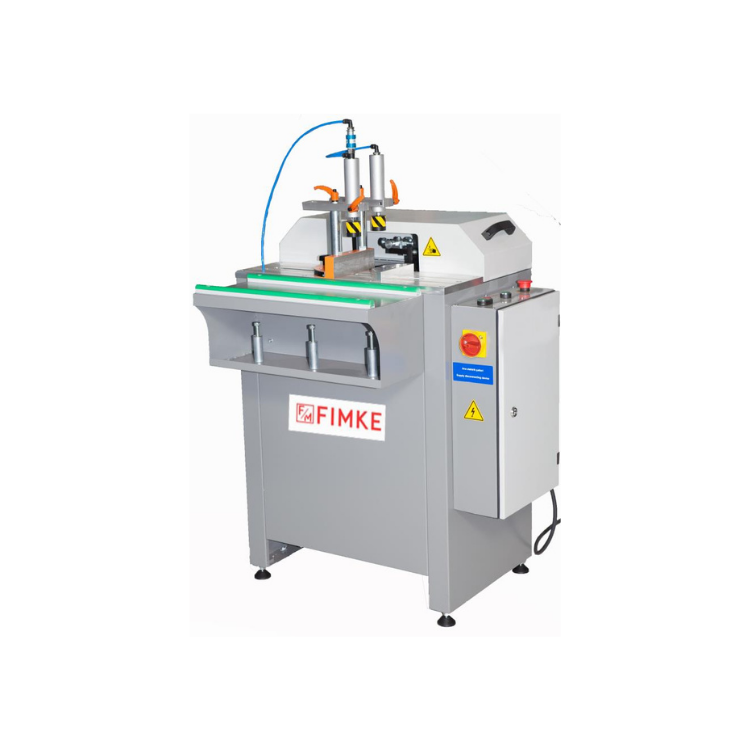

● FA-323 Automatic Intermediate Practice Machine is designed for precise and efficient exercise of the middle grinding joints of PVC and aluminum profiles. This machine has been developed to ensure high efficiency and quality, especially in mass production.

● The machine has an automatic milling process.

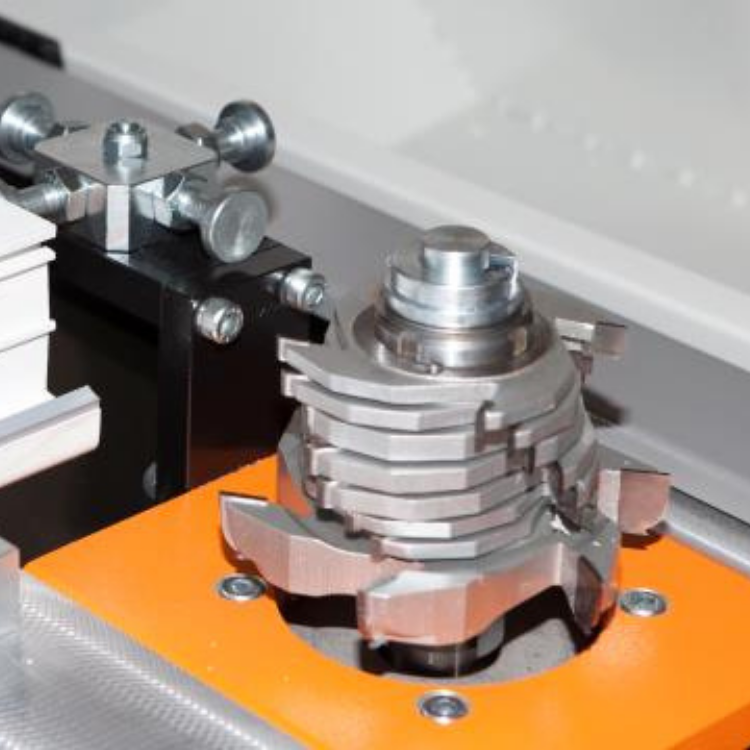

● Milling cutters are arranged in the sleeve to form a knife group, which can be quickly changed for different profile types.

● There is an easily adjustable stoppage system compatible with four different types of profiles. Thanks to that, it ensures a sensitive work that is suitable for different profile types.

● The machine offers profile exercising at different angles and allows for flexible production processes.

● Thanks to the profile clamping system, which works pneumatically with a hand control valve, the profiles are held securely and steadily.

● The specially processed table prevents profile slippage, ensuring maximum precision during operation.

● The specially designed side stop square for profiles supports smooth and accurate fitting operations.

● The machine is equipped with a support unit, enabling the processing of long profiles.

● A storage compartment is provided for unused blade groups, allowing quick and safe blade changes during job transitions.

● The machine is designed with full safety features to prevent workplace accidents.

Optional Features

● Cooling system for aluminum profile cutting: The cooling unit ensures controlled heat dissipation during aluminum profile cutting, contributing to precise and high-quality cutting results. This system prevents potential surface deformations and reduces tool wear, ensuring long-term and safe operation.

● Hydro-pneumatic system for aluminum profile cutting: The hydro-pneumatic system provides stable and controlled power transmission during aluminum profile cutting. It enables high performance, especially in mass production and intensive operations, enhancing repeatable precision and operational safety during cutting processes.

TECHNICAL SPECIFICATIONS:

Total power: 1.1 kW

Voltage: 3×400 Vac

Frequency 50/60 Hz

Current: 3A

Air pressure: 6-8 bar

Air consumption:: 18 lt/min

Engine speed: 2800 r.p.m.

Max. blade diameter Ø160 mm

Max. profile cutting height: 90 mm

Max. notching depth: 30 mm

Max. profile width: 120 mm

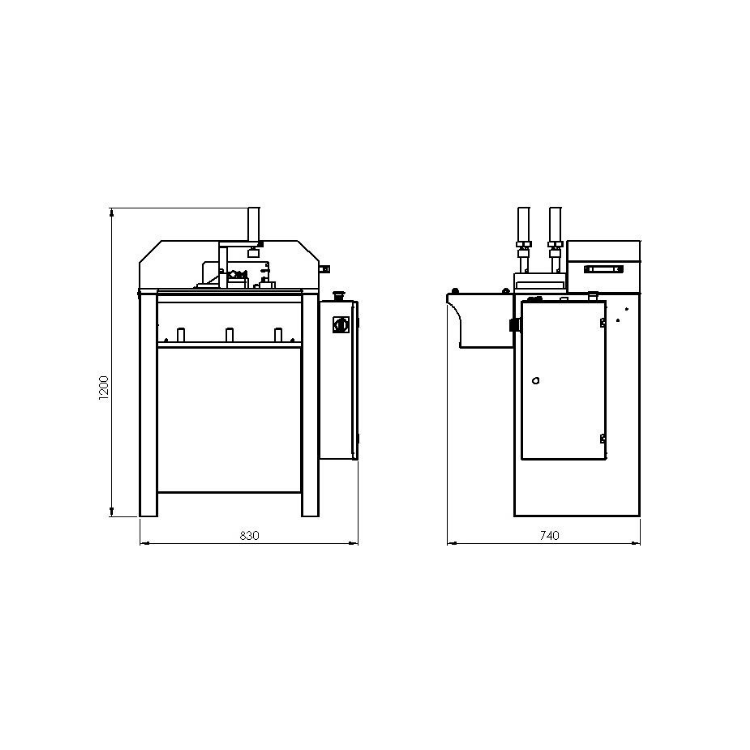

Machine height: 1200mm

Machine length: 830 mm

Machine width: 740 mm

Machine weight: 96 kg
