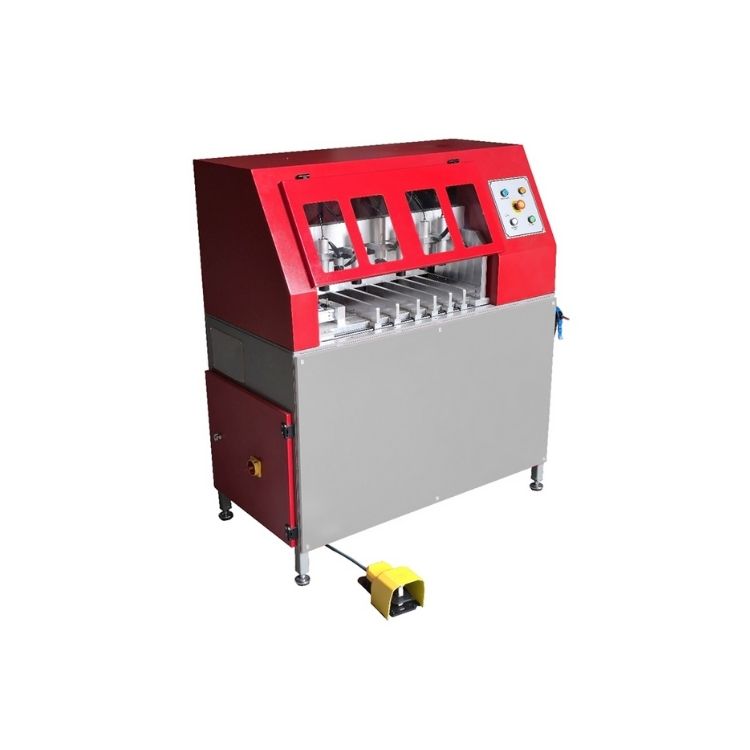

FK-760 Multiple Center Register Lapping Machine

● Designed to perform middle mullion milling operations on PVC profiles with superior quality and high precision.

● Increases productivity with the capability to process up to six profiles simultaneously from a single piece, depending on user requirements.

● The blade feed speed can be easily adjusted during the notching process, allowing quick adaptation to different profiles and application needs.

● Special profile positioning partitions ensure rigid and accurate processing of profiles.

● High precision is achieved through the movement of the mobile system on linear guide rails.

● The screw spindle mechanism connected to the motor and gearbox system ensures strong and rigid motion of the notching blade, providing stable and safe operation.

● The specially designed ruler system allows for quick and practical adjustment of the mitre stop.

● The upper guard design maximizes operator safety.

● The specially machined table prevents profile slippage, contributing to the preservation of precision.

● Blade replacement is effortless and fast thanks to the pneumatic and special locking system.

● The machine automatically detects the number of profiles to be processed, preventing unnecessary time loss.

● The dual top pressing pistons, specifically designed for each profile, together with the dual side pistons, effectively prevent issues such as profile slippage or misalignment.

● The front support leg allows long profiles to be processed stably and safely.

Technical Specifications

– Electrical Rating : 400 V, 3 ~ 50-60 Hz

– Total Power: 1,7 kW

– Max. Blade Diameter: Ø180 mm

– Max. Notching Height: 95 mm

– Max. Notching Depth: 40 mm

– Max. Profile Height: 150 mm

– Air Pressure: 6-8 Bar

– Air Consumption: 50 lt./dk.

– Machine Height: 1500 mm

– Machine Length: 1400 mm

– Machine Width: 700 mm

– Machine Weight: 370 kg
